Ever wondered why spray nozzles come in so many types? Choosing the wrong one wastes time and resources.Whether you are using a garden sprayer or an agricultural sprayer, choosing the right nozzle is very important.This guide explains hydraulic, pneumatic, flat fan, cone, and more. You’ll learn how each works and how to pick the right nozzle for farming, cleaning, or industry.
Spray nozzles turn liquid into tiny droplets, spreading it evenly over surfaces. They help us cover areas efficiently, but choosing the wrong nozzle can lead to wasted product, patchy coverage, environmental drift, and higher costs. It’s more than just spraying—nozzles control how the liquid behaves.
We focus on four main factors that affect performance: flow rate, spray pattern, pressure, and droplet size. Flow rate determines how much liquid sprays per minute, while the spray pattern shapes the coverage area. Pressure affects speed and reach, and droplet size controls both coverage and drift.
Factor | Impact |
Flow rate | Too high or low affects coverage and waste |
Spray pattern | Wrong pattern misses areas |
Pressure | Too low = poor reach; too high = drift |
Droplet size | Small = drift; large = uneven coverage |
These factors work together, so changing one can affect the others. It takes attention, but getting it right saves product and improves results.
Spray pattern is one of the most practical ways to categorize nozzles. It describes how liquid exits the nozzle, spreads, and interacts with the target surface. The spray pattern directly affects coverage uniformity, drift potential, and application efficiency. Selecting the right nozzle pattern not only reduces wasted product but also ensures that surfaces or crops receive the intended treatment evenly. Understanding these patterns is essential for anyone involved in agriculture, horticulture, industrial cleaning, or cooling applications.
Flat fan nozzles produce a “mountain-shaped” flat spray that spreads in an elongated, elliptical pattern. This allows for even coverage across wide surfaces while maintaining precise control over overlapping passes. They are particularly suited for herbicide application in row crops, surface cleaning in industrial settings, and cooling processes where uniform coverage is required.
Common types include:
Even Flat Fan: Delivers a consistent flow rate across the width for uniform application.
Standard Flat Fan: Slightly tapered for more targeted spraying.
Flat fan nozzles are versatile, simple, and widely used in both agriculture and industrial cleaning tasks due to their predictable spray characteristics.
Hollow cone nozzles generate a ring-shaped spray pattern, where most of the liquid is concentrated at the edges, leaving the center relatively empty. This makes them ideal for foliar applications where canopy penetration is important, such as spraying pesticides or nutrients on dense crop foliage.
Other applications include:
Humidification systems
Gas washing in industrial processes
By producing fine droplets, hollow cone nozzles enhance surface coverage without causing excessive runoff or pooling, reaching areas that flat or full cone patterns might miss.
Full cone nozzles create a solid, circular spray pattern completely filled with liquid. They are designed for applications requiring even and thorough wetting over a target area.
Typical uses:
Cooling systems
Dust suppression
Washing tasks in industrial or agricultural environments
Because the spray covers the entire cone area uniformly, full cone nozzles are ideal for situations where consistent application is essential, such as spraying fertilizers, disinfectants, or water over large surfaces.
Solid stream nozzles generate a single, concentrated jet of liquid, with some designs splitting the flow into 2 or 7 streams depending on the model. This focused output is perfect for tasks requiring high impact or precise targeting.
Common applications:
Cleaning hard surfaces
Cutting through tough residues
Applying fertilizers directly to plant bases
The concentrated energy of the stream allows for efficient penetration and minimizes product waste, making solid stream nozzles ideal when accuracy and force are more important than broad coverage.
Floodjet nozzles are a variant of flat fan nozzles with an extra-wide spray angle, typically around 160°. They are designed for high-volume, low-pressure applications where large areas need to be covered quickly.
Typical uses:
Applying soil herbicides
Rinsing or wetting large surfaces in industrial cleaning
Floodjet nozzles reduce the number of passes required, saving time and labor. By combining wide coverage with efficient liquid distribution, they maximize operational efficiency while minimizing spray overlap and missed spots.
Spray nozzles operate using two primary systems: hydraulic and pneumatic. Each system works on a different principle and is suited for specific applications. Selecting the right nozzle system is crucial for achieving optimal coverage, maximizing efficiency, and controlling operational costs. Understanding the differences helps in choosing the best nozzle for agricultural spraying, industrial cleaning, or specialized coating tasks.
Hydraulic nozzles rely solely on the pressure of the liquid being sprayed to create a droplet pattern. They are simple in design, highly reliable, and cost-effective, making them the most commonly used nozzles in agriculture and general cleaning applications.
Key characteristics include:
Operate purely by liquid pressure without additional equipment
Provide moderate droplet size control, generally larger than pneumatic systems
Durable and low-maintenance, ideal for high-volume spraying
Cost-efficient for large-scale or repeated use
Hydraulic nozzles are perfect for applications where simplicity, reliability, and broad coverage matter more than extremely fine droplet control, such as herbicide application, irrigation, or surface washing.
Pneumatic nozzles, also called air-atomizing nozzles, use a combination of liquid and compressed air to break up the liquid into a fine mist. This system allows for precise control over droplet size and can handle liquids with higher viscosity, such as fertilizers, pesticides, or coatings.
Advantages include:
Produces finer and more uniform droplets
Reduces drift and improves coverage on delicate surfaces
Handles thicker liquids that hydraulic nozzles may struggle with
Suitable for precision spraying where accurate coverage is critical
However, pneumatic systems are more complex and typically require an air compressor or pressurized air supply, increasing initial setup costs and maintenance requirements.
Internal mixing nozzles combine air and liquid inside the nozzle body before exiting. This ensures consistent atomization and smooth droplet formation.
Applications and benefits:
Consistent droplet size for uniform coverage
Ideal for high-precision foliar sprays in agriculture
Reduces product waste while maximizing coverage
In external mixing nozzles, air and liquid meet outside the nozzle tip. This design allows for flexible adjustment of spray patterns and droplet sizes according to specific needs.
Applications and benefits:
Adjustable atomization to suit different spray requirements
Works well with a variety of liquids and viscosities
Offers precise control over spray angle and droplet distribution
Impinging nozzles use the principle of colliding air and liquid streams at a single point to produce uniform droplets.
Applications and benefits:
Produces very fine, uniform droplets suitable for delicate surfaces
Excellent for coating applications or precision humidification
Ensures controlled and even coverage, minimizing overspray
Pneumatic nozzles are ideal in scenarios where droplet size, uniformity, and precise application are more important than simplicity or cost, such as specialty spraying in agriculture, horticulture, or industrial processes.
Picking the right nozzle ensures even coverage, saves product, and reduces drift. Follow these steps to get it right.
Check your product label for recommended gallons per acre or liters per hectare. Calculate based on field size. It helps avoid over- or under-application.
Flow rate shows how much liquid sprays per minute. Use manufacturer charts to match nozzle size to speed, pressure, and desired output. They make selection easier and more accurate.
Droplet size affects drift and coverage. Finer droplets cover quickly but drift more. Coarser droplets reduce drift and penetrate plant canopies better.
Insecticides: Coarse droplets.
Contact Fungicides: Fine to Coarse.
Systemic Fungicides: Coarse.
Herbicides (Foliar): Fine.
Soil Herbicides: Fine or Coarse.
Spray angle affects overlap. Narrow angles need higher booms, wide angles need lower booms. Adjusting height ensures full coverage and reduces gaps.
Windy conditions? Choose coarser droplets to minimize drift. Need canopy penetration? Use finer droplets and cone patterns. They reach hidden areas and improve effectiveness.
Choosing the right material affects nozzle life and performance. Each type suits different tasks.
Ceramic (K): Extremely hardwearing and long-lasting. Best for abrasive products like sand or thick chemicals. It resists wear better than plastic.
Plastic §: Affordable and lightweight. Wears out faster, so best for short-term or non-abrasive applications. They are easy to replace.
Stainless Steel (S): Durable and impact-resistant. Great all-around choice. Handles most chemicals and survives tough conditions.
They each balance cost, durability, and application type. Picking correctly saves time and money.
Proper maintenance keeps nozzles spraying evenly and lasts longer. Small steps prevent big problems.
Use soft brushes or compressed air. Avoid needles or hard objects that can damage tips. Soak nozzles in mild cleaning agents or soda for stubborn buildup. They stay precise when cleaned gently.
Flow rate matters. If an old nozzle sprays 15% more than a new, replace it. Check visually for uneven patterns or gaps. Worn nozzles waste product and reduce coverage.
Always use clean, filtered water. Match filter mesh to your nozzle size. For abrasive products, choose wear-resistant materials like ceramic or stainless steel. They last longer and keep spray patterns consistent.
Q: What is the most common type of spray nozzle?
A: Flat fan nozzles are the most common, widely used for herbicide spraying in agriculture.
Q: Which nozzle type is best for reducing spray drift?
A: Air Induction (AI) or Venturi nozzles reduce drift by producing larger, air-filled droplets.
Q: How often should I replace my spray nozzles?
A: Replace nozzles when wear exceeds 15% or spray patterns become uneven. Check seasonally.
Q: Can I use the same nozzle for different chemicals?
A: It’s possible, but clean thoroughly to prevent cross-contamination. Dedicated nozzles are safer.
Selecting the right spray nozzle is essential for proper coverage and consistent results. The correct choice saves money, time, and product while reducing environmental impact. Always check chemical labels and use manufacturer selection charts. When uncertain, consulting a specialist ensures safe, effective, and efficient spraying.

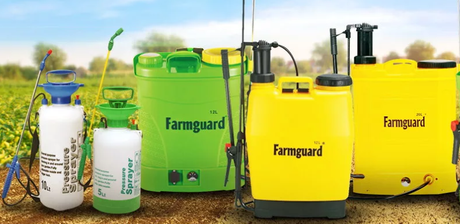

Taizhou Guangfeng Plastic Co.,Ltd is specialized in manufacturing agriculture knapsack sprayers and garden sprayers for more than 28 years.Products exported to over 50 countries and our brand Farmguard shares great fame in the world. If you want to know more, welcome to contact us.
