Backpack Sprayers and Mistblowers: Uses and Differences

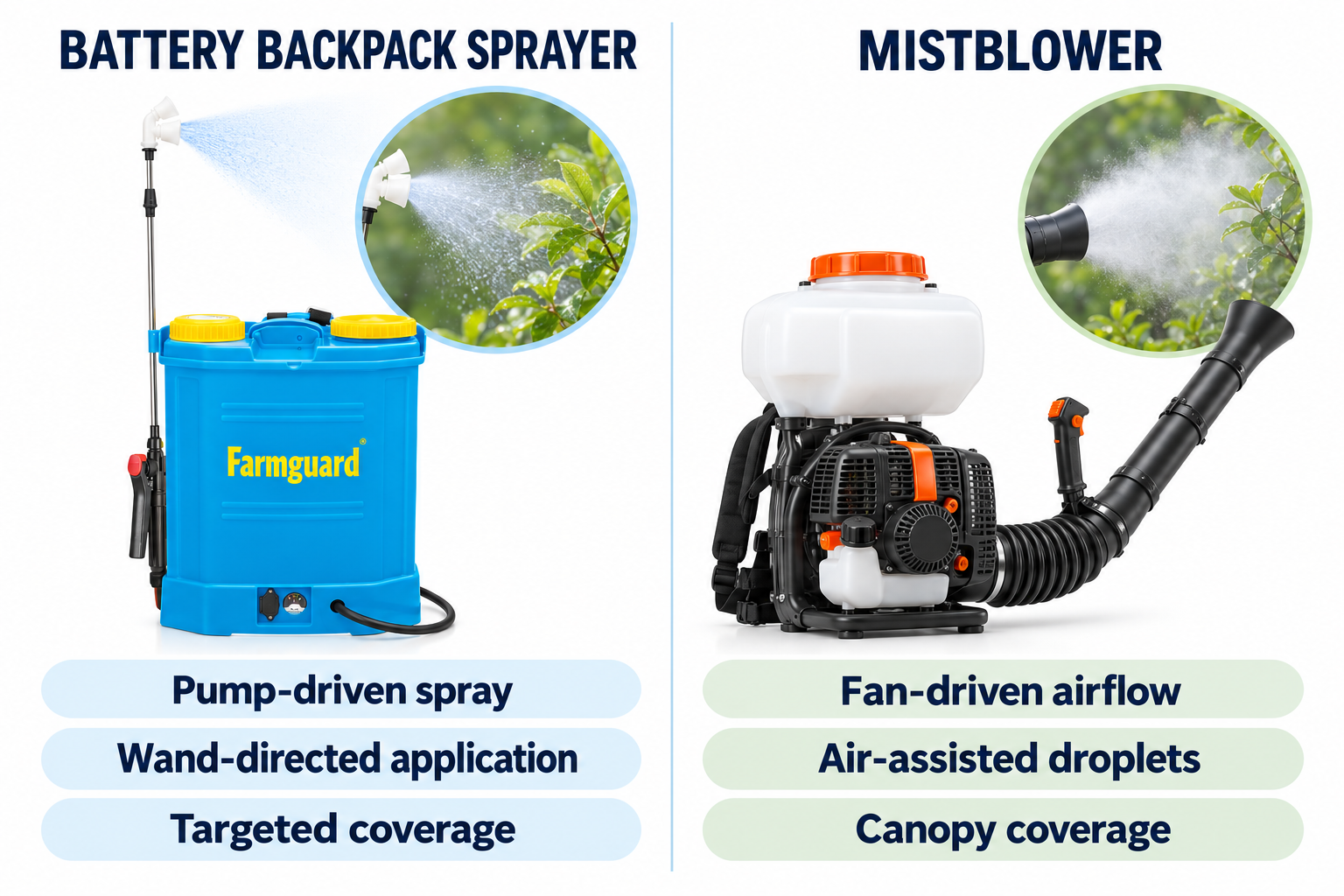

Backpack sprayers utilize hydraulic pressure to deliver targeted, low-velocity liquid droplets ideal for localized weed control, precise fertilization, and spot treatments, whereas mistblowers employ high-velocity air streams from gasoline or motorized fans to atomize liquid into fine aerosol mists, making them superior for broad-coverage canopy penetration, pest vector control, and large-scale agricultural spraying.

At a Glance

Fundamental Working Principles of Agricultural Sprayers

Agricultural fluid applicators rely on distinct physical principles to convert bulk liquid into distributed droplets. Standard liquid sprayers utilize hydraulic atomization. In a manual or electric configuration, a pump builds positive pressure within a sealed fluid chamber. When the liquid passes through a small orifice in the spray nozzle, the pressure drop causes the liquid stream to break up into discrete droplets ranging from 150 to 400 microns. This moderate droplet size ensures high mass landing on specific plant leaves while minimizing wind-induced atmospheric drift. Modern battery backpack sprayers have enhanced this technology by integrating continuous DC motor pumps, providing constant working pressure without manual hand-pumping.

Mistblowers operate on a pneumatic or air-assisted atomization principle. Liquid is fed under low hydraulic pressure to a high-velocity air duct driven by a 2-stroke or 4-stroke internal combustion engine or high-rpm brushless motor. The rapidly moving air shear forces tear the liquid stream apart at the discharge tube outlet, producing microscopic droplets between 30 and 100 microns. The generated air stream acts as both an atomizing medium and a transport vector, creating turbulent air motion that flips target plant leaves to coat both adaxial and abaxial leaf surfaces.

The choice of propulsion mechanism influences energy transfer and spray coverage. Hydraulic systems transfer chemical volume directly via fluid conduits, making them energy efficient for ground-level application. Pneumatic systems consume additional energy to generate volume air movement, converting engine torque into kinetic air velocity to transport ultra-fine mists across wider vertical and horizontal planes.

Working Principle Note: Fluid pressure stability directly governs volumetric distribution accuracy. Incorporating high-efficiency 12V diaphragm pumps powered by rechargeable lithium cell arrays ensures steady pressure output, eliminating output decay associated with manual leverage pumps.

Key Differences Between Backpack Sprayers and Mistblowers

The technical distinction between hydraulic pressure sprayers and air-assisted mistblowers stems from fluid mechanics, droplet transport velocity, and spray coverage patterns. Battery backpack sprayers deliver liquid streams at regulated pressures ranging from 0.15 to 0.50 MPa, generating large-to-medium droplet sizes that fall rapidly due to gravitational force. This targeted delivery allows operators to execute precise spot applications near sensitive crops without inducing chemical drift or off-target exposure.

Mistblowers generate air discharge velocities exceeding 70 meters per second. This high kinetic energy atomizes the liquid into ultra-low-volume droplets that remain suspended in atmospheric currents longer, expanding horizontal reach up to 15 meters and vertical reach up to 12 meters. While this provides rapid acreage coverage, it demands strict operational controls regarding wind velocity and ambient air temperature to prevent thermal inversion drift.

Equipment weight, fuel delivery, and acoustic emissions differ significantly between the two systems. A fully loaded battery backpack sprayer relying on a 12V 8Ah lead-acid or lithium power unit weighs between 18 and 22 kilograms, operating silently without exhaust emissions. Gasoline-powered mistblowers weigh between 25 and 32 kilograms when fully fueled and loaded with chemical solution, generating high noise levels and engine exhaust that limit indoor greenhouse applications.

1. Droplet Size and Atomization Dynamics Hydraulic sprayers produce droplets tailored for high-volume wet-out applications, preventing off-target drift. Mistblowers produce aerosolized mists that float into dense vegetative canopies.

2. Air Transport and Penetration Dynamics Standard sprayers rely solely on liquid kinetic energy leaving the nozzle tip. Mistblowers utilize continuous air velocity to displace air inside thick crop foliage, depositing chemicals on hidden stem bases and under leaf surfaces.

3. Flow Rate and Liquid Consumption Efficiency Sprayers discharge higher volumes per minute (1.5 to 3.2 liters per minute) for thorough surface wetting. Mistblowers operate on ultra-low-volume principles (0.15 to 1.0 liters per minute), maximizing chemical coverage per tank load.

Operational Applications and Agricultural Use Cases

Selecting appropriate application equipment depends on crop geometry, pest biology, target pathogen locations, and environmental boundaries. Commercial agricultural operations deploy specific units based on field architecture and chemical uptake requirements.

1. Targeted Weed Control and Selective Herbicides In row-crop farming, orchards, and nurseries, applying non-selective herbicides demands extreme positional accuracy. A 12V battery sprayer with rechargeable lead battery provides controlled fluid pressure to deposit precise liquid volumes directly on weed foliage without atomizing tiny droplets that could drift onto high-value cash crops.

2. Vector Management and Mosquito Mitigation Public health agencies and industrial facility managers require broad-area aerosol distribution to control flying insects and adult mosquito populations. Mistblowers excel in these applications because their fine droplets remain airborne long enough to contact insects in flight and penetrate dense brush where pests shelter.

3. Orchard and Vineyard Canopy Protection Treating mature fruit trees, vine trellises, and dense bushes requires vertical fluid transport. Mistblowers utilize high-velocity air streams to lift foliage, ensuring full coverage across upper leaves and branch intersections that low-pressure sprayers cannot reach.

4. Greenhouse and Enclosed Structure Sanitization Enclosed greenhouse environments demand zero exhaust emissions and low noise levels. Electric powered spraying units allow operators to execute row-by-row spot spraying, soil drenching, and bench sanitation without exposing workers or delicate plants to carbon monoxide fumes.

Core Component Engineering and Technical Specifications

The structural integrity and operational life of chemical application equipment depend on component design and material selection. Modern liquid sprayers utilize high-density polyethylene blow-molded fluid tanks designed to resist chemical degradation from acidic fertilizers, alkaline solutions, and organic solvents. Fluid delivery paths incorporate chemical-resistant fluororubber seals, reinforced PVC flexible hoses, and stainless steel or fiberglass spray lances.

The driving heart of an electric sprayer is its positive displacement diaphragm pump powered by a compact electric motor. When selecting commercial hardware, purchasing agents prioritize units equipped with automatic pressure-demand switches that shut off the pump motor when the lance trigger valve is released. Utilizing a durable portable electric chemical spraying unit equipped with an 8Ah rechargeable battery configuration provides operational endurance up to six hours on a single charge while maintaining consistent line pressure.

Mistblowers incorporate additional mechanical systems including high-rpm centrifugal impellers, dynamic air distribution shrouds, and engine throttle controls. The air discharge elbow features adjustable metering valves to control liquid feed rates into the air stream. Dual-stage air intake filters protect internal combustion components from dust and debris ingestion during dry field operations.

Engineering Maintenance Protocol: To prevent crystallizing chemical residue from clogging diaphragm pump valves or internal nozzle channels, flush the fluid circuit with clean warm water and a neutral cleaning agent after every 20 operational hours.

Technical Comparison Metrics

Comparing performance specifications between backpack sprayers and mistblowers highlights key differences in fluid discharge dynamics, energy requirements, and operational efficiency.

Industry Purchasing and Operational Considerations

When evaluating equipment for commercial agricultural operations, municipal maintenance contracts, or retail distribution networks, procurement professionals analyze ergonomics, operational expenses, regional regulatory compliance, and total lifecycle costs. Commercial operators wear equipment for six to eight hours daily, making ergonomic weight distribution and harness padding critical factors for reducing physical fatigue and injury risks.

Battery backpack sprayers offer ergonomic advantages due to lower overall dry mass and absence of motor vibration. Electric systems eliminate gasoline fuel handling, oil mixing, engine starter maintenance, and spark plug replacements. Adopting an efficient rechargeable battery power sprayer lowers operating costs to negligible electrical charging expenses while providing quiet performance suitable for noise-sensitive suburban landscapes and municipal parks.

European commercial clients prefer quiet, zero-emission electric battery units due to strict environmental noise ordinances and worker safety standards. Conversely, operators managing expansive agricultural forestry, large orchard plantations, and public health vector control initiatives in rural zones select heavy-duty gasoline mistblowers for their unmatched acreage coverage speed and foliage penetration power.

1. Ergonomic Load Management Padded shoulder straps, ergonomic backboards, and balanced tank centers of gravity reduce lumbar torque during full-load walking operations.

2. Total Lifecycle and Operational Expenses Electric sprayers lower operating costs by eliminating liquid fuel consumption and mechanical engine wear, requiring only periodic battery cell and pump seal replacements.

3. Chemical Drift Mitigation Managing chemical drift requires matching equipment to wind conditions. Hydraulic sprayers with coarse nozzles minimize drift during breezy conditions, whereas mistblowers require calm weather windows.

4. Regulatory and Regional Market Trends Strict urban noise regulations and zero-emission workplace policies drive adoption of electric powered backpack systems in commercial and residential property management.

Equipment Selection Summary

Understanding the operational differences between backpack sprayers and mistblowers ensures optimal equipment selection for specific liquid application challenges. Hydraulic battery backpack sprayers provide continuous pressure, whisper-quiet operation, zero emissions, and drift-controlled droplet distribution ideal for weed control, row cropping, and greenhouse applications. Gasoline or high-power mistblowers deliver broad coverage, high air velocities, and fine aerosol atomization needed for penetrating dense forest canopies, treating mature orchards, and executing wide-area vector pest management. Matching equipment selection to target crop profiles, environmental rules, and labor requirements optimizes chemical delivery and maximizes return on investment.
