Have you ever wondered how a Manual Sprayer works? A sprayer is a simple yet essential device used to apply various liquids to an area. Whether for gardening, agriculture, or pest control, the core mechanism of a sprayer remains similar: pressurizing a liquid and dispensing it through a nozzle.
In this article, we will explore the mechanism of sprayers in detail, focusing on how the pressure system, nozzle, and other components work together. You’ll also learn about different types of sprayers, their specific uses, and best practices for maintaining them. By the end of this article, you’ll have a comprehensive understanding of how manual sprayers function and how to use them effectively for your spraying needs.
The fundamental mechanism of a sprayer involves pressurizing a liquid inside a tank, which is then forced out through a nozzle when the user activates the sprayer. Despite the simplicity of the process, the mechanism is highly effective and essential for tasks like applying pesticides, fertilizers, and water.
Sprayers rely on pressure to work effectively, and understanding how pressure is created, maintained, and released is essential for using a sprayer efficiently. Whether you’re applying herbicide to a large farm or watering your garden, the mechanism behind your manual sprayer ensures that the liquid is dispensed in the desired manner.
A manual sprayer is made up of several key components, each of which plays a critical role in ensuring the device functions as intended. Let’s look at each part in more detail.
The tank is where the liquid solution (such as water, pesticide, or fertilizer) is stored. It serves as the reservoir from which the liquid is drawn and pressurized. The size of the tank will determine how much solution it can hold. Tanks for manual sprayers typically range from 1 gallon to 5 gallons, though larger sprayers may have tanks that hold 20 gallons or more. The tank needs to be sturdy to handle the pressure and large enough to hold enough liquid for the intended application.
1. Tank Capacity: Larger tanks are ideal for larger spraying areas, while smaller tanks are more convenient for spot treatments or small-scale gardening.
2. Tank Material: The tank is usually made from durable plastic or sometimes metal, depending on the sprayer model. Plastic tanks are more lightweight, while metal tanks can withstand higher levels of pressure.
The pump mechanism is responsible for creating the pressure needed to spray the liquid. In manual sprayers, the user operates the pump handle to build pressure inside the tank. As you pump, air is forced into the tank, pressurizing the liquid solution inside.
1. Manual Pumping: For manual sprayers, the user pumps a handle, typically located on top of the tank. The more you pump, the higher the pressure inside the tank becomes. This pressure is what forces the liquid through the nozzle when the trigger is pulled.
2. Pressure Level: The pump is designed to generate the necessary pressure to release the liquid as a fine mist, cone, or stream. Some sprayers also include pressure gauges that allow users to monitor and control the pressure level.
The pressure chamber is the part of the sprayer where the liquid is pressurized after the pump mechanism is activated. The pressure chamber stores the liquid under pressure until the user activates the nozzle to release it.
1. Sealing Mechanism: Once the liquid is pressurized, the chamber must be sealed tightly to prevent leaks and maintain pressure. Some sprayers feature automatic seals that help ensure the pressure is maintained until needed.
2. Pressure Build-Up: When the user pumps the handle, air is pumped into the pressure chamber, compressing the air above the liquid and causing the pressure inside the chamber to increase. This pressure forces the liquid through the nozzle.
The nozzle controls the flow and spray pattern of the liquid. The nozzle can be adjusted to create a fine mist, a cone-shaped spray, or a concentrated stream, depending on the application.
Spray Patterns:
Mist Pattern: Used for general coverage, such as spraying delicate plants or applying a thin layer of water or pesticide.
Cone Pattern: Ideal for broad coverage over a larger area.
Stream Pattern: Best for targeted applications, such as spot spraying weeds or pests.
Adjustability: Most manual sprayers have nozzles that can be adjusted by twisting or rotating the nozzle. Some models may have multiple interchangeable nozzles to provide different spray patterns.
The hose connects the pressure chamber to the nozzle, carrying the pressurized liquid from the tank to the target area. Hoses are commonly used in larger sprayers, such as backpack sprayers, to allow the user to apply the liquid more easily without having to carry the tank around.
1. Hose Length: Longer hoses provide more flexibility, allowing the user to cover a wider area without moving the tank. However, they can also make the sprayer heavier and harder to control.
2. Hose Material: Most hoses are made of durable rubber or plastic to withstand pressure. Some hoses are also reinforced with mesh or braided fibers to prevent them from bursting under high pressure.
Sprayers come in different types, each designed for specific tasks. Below, we explore the mechanisms of some of the most commonly used sprayers.
Manual sprayers rely on human power to create pressure inside the tank. The user pumps the handle up and down, forcing air into the tank, which pressurizes the liquid inside. The higher the pressure, the more powerful the spray.
In manual sprayers, the tank is filled with the solution to be sprayed. The user operates a hand pump to build pressure inside the tank. The pressure forces the liquid through the nozzle when the trigger is pulled.
The nozzle can be adjusted to create different spray patterns. Some manual sprayers allow users to switch between a fine mist for broad coverage and a concentrated stream for more targeted applications.
After use, the user releases the pressure in the tank to prevent leaks or accidents when opening the tank. This is done by either opening a release valve or squeezing the trigger.
· Lightweight and portable.
· Affordable and simple design.
· Ideal for small-scale applications.
· Gardening, small farms, and spot treatments.

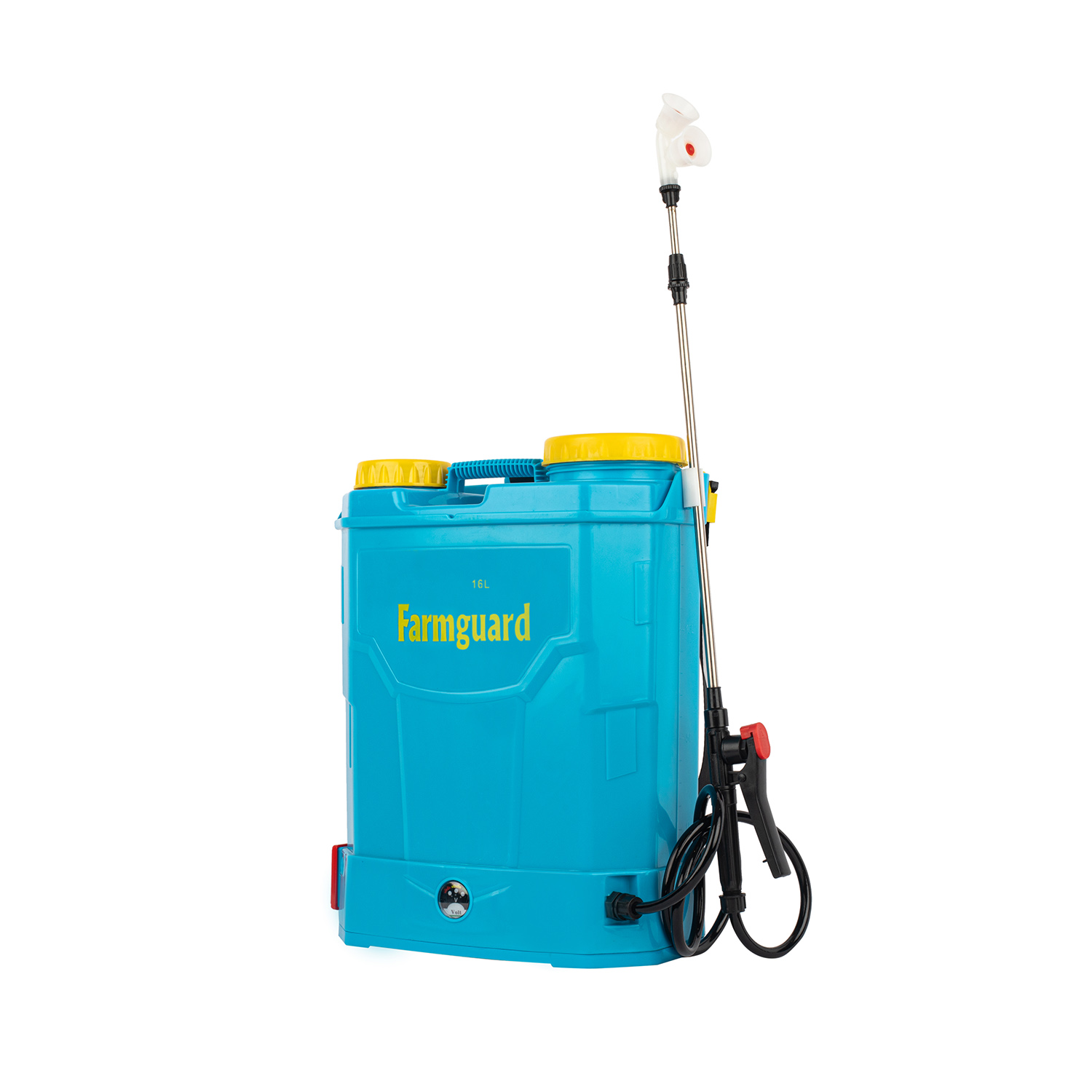

Battery-operated sprayers function by using an electric motor to generate pressure inside the tank. The pump is powered by a rechargeable battery, eliminating the need for manual pumping.
The pump is powered by the battery, which operates the motor and pressurizes the liquid inside the tank. The user only needs to turn on the sprayer and begin spraying, without having to physically pump the handle.
Like manual sprayers, battery-operated models have adjustable nozzles that allow the user to control the spray pattern and flow rate. The nozzle can be adjusted to create a fine mist or a more direct stream.
The motor runs continuously while the sprayer is turned on, providing a steady spray. This is ideal for tasks requiring prolonged use, as the user doesn’t have to pump repeatedly.
· Requires less physical effort.
· Provides more consistent pressure.
· Ideal for medium to large areas.
· Lawn and garden care, pesticide application, agriculture.
Motorized sprayers are powered by either a gasoline engine or an electric motor. These sprayers are commonly used for large-scale applications and can generate high pressure to cover larger areas more quickly.
In motorized sprayers, the engine drives the pump mechanism, which pressurizes the liquid in the tank. These pumps can generate much higher pressure compared to manual or battery-operated sprayers, allowing for larger, more powerful sprays.
Motorized sprayers often come with longer hoses and more robust nozzles, making them suitable for large-scale applications. The nozzle can be adjusted for different spray patterns.
Motorized sprayers are designed to maintain high pressure and handle large amounts of liquid, making them ideal for commercial and agricultural uses.
· High pressure and large capacity.
· Suitable for large-scale applications.
· Less manual labor required.
· Large farms, commercial pest control, landscaping, orchard spraying.
Pressure is essential for the sprayer to function, as it pushes the liquid through the nozzle to be sprayed over the target area. The mechanism for creating and maintaining pressure differs depending on the type of sprayer.
In manual sprayers, the pressure is created by manually pumping the handle. Each time the handle is pumped, air is forced into the tank, increasing the pressure inside. The more the handle is pumped, the higher the pressure becomes.
Some manual sprayers have a pressure gauge that shows the current pressure. This allows users to adjust the number of pumps to reach the desired pressure level.
After the spraying task is completed, the user releases the pressure by opening a valve or squeezing the trigger. This prevents the sprayer from retaining excess pressure, which could lead to leaks or accidents.
Battery-operated sprayers use an electric motor to generate consistent pressure. As long as the battery is charged, the sprayer will maintain pressure and deliver a steady spray.
Since the motor runs continuously, the pressure remains consistent throughout the spraying process. This eliminates the need for manual pumping and ensures a steady application of the solution.
Some battery-operated sprayers allow users to adjust the flow rate of the liquid, providing flexibility for different spraying tasks.
Motorized sprayers, whether gasoline or electric-powered, generate the highest pressure levels of all sprayer types. The engine drives the pump, which maintains high pressure in the tank for long periods of time.
Motorized sprayers are capable of maintaining high levels of pressure, which is necessary for large-scale spraying applications.
The nozzle is one of the most critical components of a sprayer, as it controls how the liquid is dispensed. Nozzles come in different types, and their mechanisms can vary.
1. Flat Fan Nozzle: This nozzle creates a flat spray pattern, which is ideal for covering large, flat areas such as lawns or garden beds.
2. Cone Nozzle: The cone nozzle produces a cone-shaped spray that is useful for misting or spraying large areas with even coverage.
3. Jet Nozzle: The jet nozzle delivers a concentrated stream of liquid, ideal for targeted applications such as weed control.
The nozzle can often be adjusted to change the spray pattern. Some sprayers allow you to rotate the nozzle tip, while others may require the nozzle to be swapped out entirely. Nozzle adjustment is essential for ensuring that the solution is applied correctly and evenly.
Maintaining your sprayer and troubleshooting common issues are essential for ensuring the sprayer remains functional and efficient for future use.
After each use, clean your sprayer thoroughly to remove any chemical residue and prevent clogs. This is especially important when switching between different types of solutions, such as from a pesticide to a fertilizer.
1. Clean the Tank: Rinse the tank with clean water and scrub away any residue.
2. Flush the Hose: Run clean water through the hose to clear any obstructions.
3. Clean the Nozzle: Remove and rinse the nozzle to ensure it is free from debris or chemicals.
· No Liquid Dispensed: Check for clogs in the nozzle, hose, or tank. Make sure the pump is functioning correctly.
· Uneven Spray: Adjust the nozzle or ensure the pressure is consistent.
· Leaks: Inspect seals and connections for wear and replace any damaged parts.
· Difficulty Pumping: Clear any blockages from the pump mechanism to restore functionality.
Understanding the mechanism of a sprayer is essential for effective and efficient liquid application. Whether you're using a manual sprayer, battery-operated model, or motorized sprayer, knowing how each component works together ensures that you can achieve the best results. Regular maintenance and troubleshooting further ensure your sprayer remains in optimal condition for future use. Taizhou Guangfeng Plastic Co., Ltd offers high-quality manual sprayers and sprayer parts, designed to meet the needs of home gardeners and large-scale agricultural applications alike.
Q1: How often should I clean my manual sprayer?
A1: Clean your sprayer after each use to avoid chemical buildup and clogging.
Q2: Can I use any chemical in my sprayer?
A2: Only use chemicals recommended by the manufacturer to avoid damaging the sprayer or harming plants.
Q3: How do I know if the sprayer is pressurized correctly?
A3: The sprayer will become difficult to pump when it reaches maximum pressure.
Q4: Can I store the sprayer with chemicals inside?
A4: No, always empty and clean the sprayer before storing it.
Q5: Is it safe to use a manual sprayer for pesticides?
A5: Yes, as long as you follow the safety instructions, wear protective gear, and use the correct chemicals.
