Power Sprayer Maintenance Tips You Should Know

Proper power sprayer maintenance requires immediate post-use flushing, systematic nozzle inspection, proactive pump lubrication, and precise calibration to guarantee stable pressure, prevent chemical corrosion, and maximize operational lifespan.

At a Glance

Importance of Maintaining Your Power Sprayer

Regular maintenance of an agricultural power sprayer directly sustains system hydraulic pressure, prevents internal chemical degradation, minimizes operational downtime, and extends overall equipment service life.

Maintaining a high-pressure agriculture spray pump is fundamental to achieving optimal field performance. Chemical formulations, including wettable powders, emulsifiable concentrates, and liquid fertilizers, exert continuous mechanical and chemical stress on internal components. Without systematic maintenance, residual chemicals crystallize within pump chambers, abrade piston seals, and clog distribution lines. Consistent maintenance preserves system pressure stability, ensuring that crop protection products are atomized accurately across targeted foliage.

From a structural engineering perspective, the internal mechanics of a power sprayer rely on precise tolerances. Diaphragms, O-rings, check valves, and pressure regulators operate under continuous hydraulic load. Regular inspections allow operators to identify micro-tears in seals, stress fractures in manifold housings, or minor pressure drops before total mechanical failure occurs. Field data indicates that preventative maintenance reduces unexpected field breakdowns by over 60 percent while preserving liquid output efficiency.

Furthermore, proper sprayer upkeep delivers significant financial advantages. Replacing high-precision pump housings, electric motors, or engine assemblies incurs substantial capital expenditure. By maintaining clean fluid passages, properly lubricating drive mechanisms, and replacing low-cost consumables according to schedule, operators lower total cost of ownership. Accurate spraying also eliminates costly chemical overuse, protecting both input budgets and crop safety.

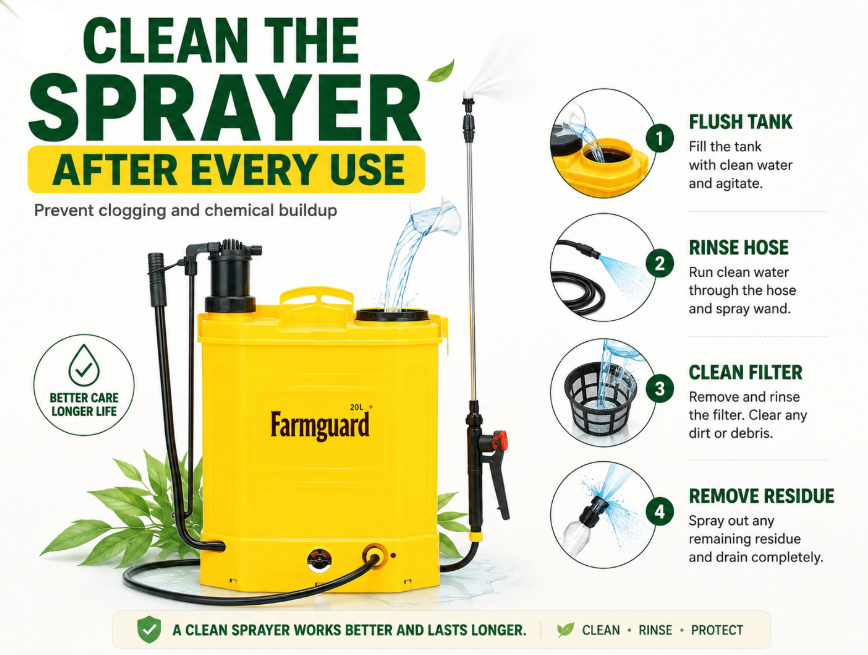

1. Clean the Sprayer After Every Use

Flushing the entire fluid circuit with clean water and neutralizing agents immediately following application prevents chemical residue buildup, valve sticking, and seal degradation.

Immediate cleaning is the primary defense against internal pump corrosion. Chemical solutions left inside the tank, suction lines, or pressure manifold undergo evaporation and concentration, leaving behind dense crystalline deposits. These hard particles act as abrasives when the agriculture spray pump is re-engaged, scratching internal cylinder walls and wearing out plunger packings.

To execute a complete cleaning cycle, drain all remaining spray mixture into an approved containment system. Fill the tank with clean water mixed with a dedicated tank cleaner or neutralizing agent, and run the pump at low pressure for several minutes to circulate the solution through all lines, return valves, and spray lances. Follow up with a thorough rinse using clean water to eliminate all chemical traces from the system.

Pay special attention to suction strainers and inline filters during this phase. Trapped debris reduces fluid flow into the pump inlet, causing cavitation—a destructive phenomenon where air bubbles collapse under high pressure, pitting metal surfaces inside the pump chamber. Clean filter screens with a soft brush to maintain unrestricted fluid intake.

For operators requiring dependable liquid handling, equipment like the China Supplier 16L Knapsack Manual Air Pressure Sprayer Machine Usage in Agriculture and Garden features easily accessible tank openings and removable filter baskets, facilitating rapid post-operation flushing and tank cleaning.

2. Check and Tighten All Connections

Inspecting and securing all hose clamps, threaded fittings, and suction line connections ensures leak-free operation and prevents external air from entering the pump inlet.

Loose connections within a high-pressure spraying circuit introduce two critical failure points: external fluid leakage and air suction intake. Fluid leaks waste valuable chemicals and pose environmental and operator safety hazards. More critically, air entering the suction line disrupts pump priming, creates pressure surges, and causes severe vibration across the spray boom or lance.

Operators should conduct visual and physical inspections of all connection points before every spraying session. Examine reinforced PVC and rubber hoses for signs of softening, cracking, bulging, or outer sleeve abrasion. Ensure that quick-connect fittings and threaded brass couplings possess intact rubber gaskets and PTFE tape seals.

Tighten hose clamps using calibrated hand tools to avoid over-torquing, which can cut into flexible hose material and create structural weaknesses. High-vibration environments generated by gasoline engines or heavy-duty electric pumps accelerate the loosening of threaded fasteners, making routine torque checks an essential operational step.

3. Inspect and Clean Nozzles

Routine inspection and non-abrasive cleaning of spray nozzles maintain precise spray patterns, correct flow rates, and uniform droplet atomization across target areas.

Nozzles are the final precision point of any spraying apparatus. Orifice wear or blockages drastically alter the spray angle, droplet spectrum, and volumetric delivery rate. Clean nozzles using soft-bristled nylon brushes or compressed air. Never use wire, nails, or metal objects, as even microscopic scratches to the orifice edge destroy spray pattern symmetry.

Inspect nozzle tips regularly for signs of physical wear or chemical erosion. As orifices enlarge due to friction from abrasive suspended powders, output volume increases, leading to chemical waste and over-application. Measure nozzle discharge over a one-minute period into a calibrated container; if the flow rate exceeds the manufacturer's specification by more than 10 percent, replace the nozzle tip immediately.

4. Lubricate Moving Parts

Applying designated greases and oils to pump drive mechanisms, pistons, hinges, and shut-off valve assemblies minimizes mechanical friction and prevents premature seal wear.

Proper lubrication reduces thermal buildup and friction on moving components within an agriculture spray pump. High-pressure plunger pumps and piston systems require continuous lubrication along cylinder contact zones and crankshaft bearings. Operating a pump dry or under insufficient lubrication causes rapid seal scoring, thermal expansion, and mechanical seizure.

Check pump oil levels in grease cups or sight glasses prior to daily deployment. Use high-grade non-detergent industrial oils or specialized grease formulas that resist water washout and chemical emulsification. Re-pack grease caps at specified service intervals, turning them a half-turn periodically during extended field operation to maintain constant pressure on packing seals.

Additionally, lubricate external moving components, including trigger shut-off mechanisms, lance hinges, pressure relief valve stems, and trailer axle bearings. Keeping control levers smooth prevents operator fatigue and ensures immediate shut-off response when controlling spray delivery.

5. Battery Maintenance for Battery Sprayers

Maintaining correct voltage charging regimes, protecting terminals from chemical corrosion, and avoiding deep discharge cycles preserve the service life of sprayer batteries.

Battery-powered sprayers rely on lithium-ion or sealed lead-acid (SLA) power packs to energize electric diaphragm pumps. Battery performance directly governs pump motor output and pressure stability. Never store a sprayer battery in a fully discharged state; sulfation in SLA batteries and deep cell damage in lithium packs drastically reduce energy capacity.

Store and charge batteries in a cool, dry environment away from direct sunlight and chemical fumes. Recharge the battery immediately after use, and apply a maintenance charge every 30 to 60 days during off-season storage. Inspect electrical terminals regularly for oxidation or chemical crusting, cleaning them with wire brushes and applying dielectric grease to prevent corrosion.

Monitor current draw during operation. A sharp increase in battery power consumption often signals mechanical resistance within the pump, such as clogged filters, tight bearings, or bound valves, requiring immediate mechanical inspection rather than repeated battery cycling.

For modern high-efficiency operations, selecting durable liquid delivery equipment such as the 12L 16L 18L 20L Hand Operated Spray Machine Agriculture Knapsack Sprayer provides a reliable manual backup or primary delivery mechanism built with robust chemical-resistant materials and dependable manual pressurization systems.

6. Monitor Pump Performance

Tracking operating pressure, liquid flow rates, engine RPM, and mechanical vibration patterns enables early diagnosis of internal pump component wear.

Regular monitoring of operational parameters serves as an effective diagnostic tool for agriculture spray pump health. Pressure gauges mounted on the pump manifold provide real-time feedback regarding internal hydraulic conditions. A sudden drop in operating pressure usually indicates worn plunger packings, leaking check valves, or a clogged suction filter.

Listen for unusual mechanical knocking or high-pitched squeals during operation. Abnormal sounds point to bearing friction, loose drive belts, or internal cavitation. Address these signs immediately to avoid cataclysmic pump housing failure or total motor burnout.

7. Store Sprayers Properly

Thoroughly winterizing, draining liquid passages, and storing spraying equipment in a clean, dry, UV-protected facility prevents freezing damage and material breakdown.

Off-season storage conditions significantly influence long-term sprayer longevity. Liquid left inside pump chambers or pressure regulators during winter freezes, expands, and cracks cast metals, plastic housings, and brass manifolds. Prior to winter storage, drain all water completely from the tank, lines, air chambers, and pump manifold.

Flush the internal fluid circuit with a 50/50 mixture of clean water and RV anti-freeze or light agricultural storage oil. This step coats internal metallic surfaces to prevent rust and oxidation while keeping synthetic rubber diaphragms and seals pliable over months of storage.

Store the sprayer unit indoors away from direct sunlight, weather exposure, and corrosive chemical vapors. Sunlight UV radiation breaks down polyethylene tanks and structural plastic handles, causing embrittlement. Store spray hoses loosely coiled without sharp bends to prevent permanent kinking or internal hose lining separation.

8. Use Original Spare Parts

Installing genuine manufacturer-specified replacement components ensures precise dimensional fits, chemical compatibility, and correct system operating pressure tolerances.

When servicing an agriculture spray pump, utilizing exact-specification spare parts is vital. Generic or low-grade aftermarket seals, O-rings, and diaphragms frequently fail to meet chemical resistance standards. Incompatible rubber compounds swell, soften, or dissolve when exposed to solvent-based pesticides, leading to rapid seal destruction and fluid contamination.

Genuine components are manufactured to strict engineering tolerances, ensuring exact fitment within pump housings. Using non-standard valve springs or incorrect thickness diaphragms alters stroke length, causing pressure imbalances, excessive vibration, and accelerated engine strain.

9. Calibrate Your Sprayer

Regularly verifying volumetric liquid delivery against vehicle speed and target coverage ensures accurate application rates, saving chemicals and preventing crop damage.

Sprayer calibration is a technical maintenance requirement that ensures the pump delivers the correct liquid volume per unit area. Over time, pump wear, regulator spring fatigue, and nozzle erosion change output delivery rates. Uncalibrated sprayers risk under-applying treatments—leading to pest control failure—or over-applying chemicals, causing crop toxicity and elevated input costs.

To calibrate, measure the exact fluid output from all nozzles over a designated timeframe under standard operating pressure. Calculate the total volume output and compare it against field travel speed and spray width calculations to determine gallons per acre or liters per hectare.

If total output strays from theoretical parameters by more than 5 percent, adjust system pressure via the pressure regulating valve or recalibrate travel speeds. If individual nozzle outputs vary by more than 5 percent across the boom, replace the faulty nozzles and re-test.

10. Follow Manufacturer Guidelines

Adhering to factory-specified maintenance schedules, tightening torques, and lubricant specifications keeps high-pressure spraying equipment performing safely within design limits.

The manufacturer’s technical manual provides exact operational parameters for your agriculture spray pump model. This document details maintenance intervals based on operating hours, correct oil viscosities, fastener torque values, and maximum pressure ratings. Operating outside these specifications accelerates wear and voids product warranties.

Maintain an operational service log tracking total run hours, oil changes, diaphragm replacements, and winterization dates. Systematic record-keeping ensures preventative maintenance occurs on schedule rather than as a reactive response to component failure.

Always comply with maximum operating RPM and PSI limits. Running a pump beyond its rated specification causes extreme thermal buildup, structural fatigue in metal castings, and immediate seal failure.

Maintenance Warning Note: Always depressurize the complete fluid circuit, disconnect electrical power sources or spark plug caps, and wear chemical-resistant personal protective equipment (PPE) before loosening any hydraulic fittings, opening filter housings, or performing internal pump servicing.
