Choosing the Right Sprayer: A Farmer-Friendly Guide to Modern Crop Protection

Selecting the right agricultural sprayer requires evaluating farm acreage, crop structure, required fluid delivery pressure, and mechanical pump efficiency to ensure precise chemical distribution, minimal droplet drift, and maximum equipment durability. Modern crop protection relies heavily on selecting a reliable agriculture spray pump architecture, whether manual air-pressure knapsack systems or high-capacity battery-operated units, to optimize chemical application efficiency and reduce labor intensity.

At a Glance

Fundamentals of Modern Crop Protection Sprayers

Modern crop protection sprayers serve as precision fluid delivery systems designed to convert bulk chemical formulations into uniform liquid droplets for targeted biological deposition.

Understanding the mechanical and hydraulic behavior of crop protection equipment is foundational to achieving biological efficacy in pest, weed, and disease management. When liquid formulations pass through an agriculture spray pump, fluid dynamics dictate the velocity, hydraulic pressure, and droplet distribution pattern produced at the nozzle tip. Achieving an optimal volumetric median diameter (VMD) ensures that spray particles adhere to foliar surfaces without bouncing off or succumbing to atmospheric spray drift. In high-density crop canopies, inadequate hydraulic pressure yields oversized droplets that sink to lower soil layers, leading to active ingredient waste and potential environmental leaching.

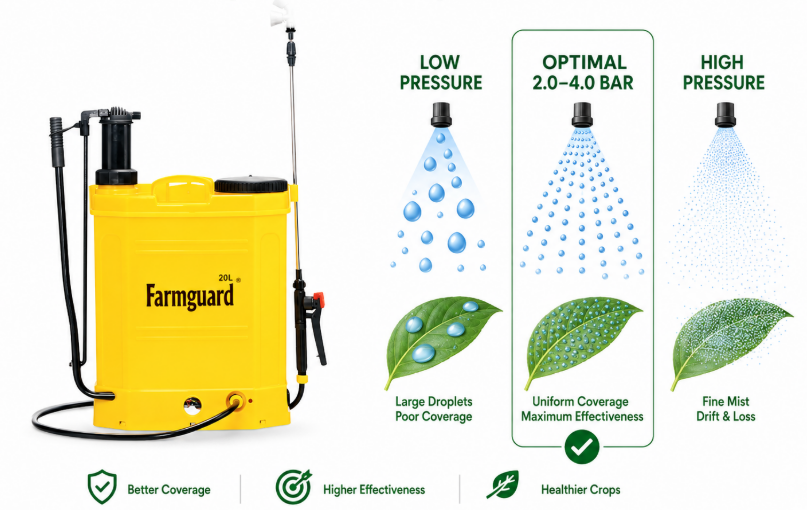

In contrast, excessive pressure without proper nozzle calibration creates atomized micro-droplets susceptible to wind drift and immediate thermal evaporation. Field research demonstrates that maintaining stable working pressures between 2.0 bar and 4.0 bar provides the optimal velocity profile for penetrating leafy crop architectures. Consequently, the mechanical integrity of the internal pump assembly, alongside the structural rigour of the tank fluid chamber, directly governs how effectively crop protection agents protect foliage under variable weather conditions.

Agricultural operations across Europe and North America increasingly demand sprayers engineered from chemically inert polymers such as high-density polyethylene (HDPE) and polypropylene. These materials resist chemical degradation caused by acidic fungicides, emulsifiable concentrates, and aggressive liquid fertilizers. Modern equipment designs integrate smooth interior tank geometry to minimize chemical residue retention and facilitate complete flushing during crop rotation transitions. By aligning fluid dynamics engineering with durable material selection, modern sprayers provide consistent application rates while protecting operators from exposure.

Key Mechanical Components of an Agriculture Spray Pump

An agriculture spray pump functions through an interconnected network of fluid pressurization chambers, check valves, heavy-duty piston rods, and precision discharge nozzles.

The operational efficiency of any crop protection machine relies entirely on the mechanical synergy of its internal drive and fluid displacement mechanisms. Within a classic manual or hand-operated knapsack system, the primary pressurization cycle begins with the reciprocal motion of the lever handle. This motion drives an internal piston or diaphragm within a sealed pressure cylinder. As the cylinder volume expands, a single-direction suction valve lifts, drawing chemical fluid from the main supply tank into the pump chamber. On the reverse stroke, the intake valve seals instantly, forcing fluid through an outlet check valve into the pressurized air dome.

The integrated air pressure chamber is a fundamental engineering component designed to smooth out hydraulic pulses created by manual pumping action. Without this pressurized air cushion, fluid flow through the discharge wand would fluctuate violently with every stroke of the handle, leading to uneven spray deposition across crop foliage. Modern heavy-duty units incorporate stainless steel or brass piston rods paired with reinforced fluoroelastomer or Viton seal rings. These materials prevent fluid bypass, maintain high volumetric efficiency, and withstand continuous abrasion caused by wettable powder suspensions.

Downstream from the pump assembly, the fluid travels through high-burst-pressure PVC reinforced tubing to the trigger valve and spray lance. The trigger mechanism utilizes stainless steel return springs and internal O-rings to provide instantaneous fluid shutoff, preventing post-application dripping. At the end of the lance, precision-molded brass or poly-acetal nozzles shape the fluid stream into specific spray patterns, such as hollow cone, solid cone, or flat fan configurations. Each component must meet strict dimensional tolerances to prevent localized pressure drops and maintain uniform flow rates across extended spraying operations.

Selecting the Right Capacity and Power Mechanism

Selecting the ideal sprayer requires balancing physical tank volumetric capacity against operator ergonomics, field topography, and total application acreage.

Agricultural operations vary significantly in scale, ranging from small-scale horticulture plots and urban glasshouses to multi-hectare open-field cereal cultivation. Choosing an improper tank capacity or drive mechanism directly impacts labor productivity and operator fatigue. For localized spraying, spot treatments, or small garden beds, compact manual pressure units offer agility and ease of storage. For example, a specialized 16L manual air pressure sprayer machine for agriculture and garden applications provides an excellent structural balance, delivering sufficient fluid volume to cover substantial row lengths without overburdening the operator's back and shoulders.

When selecting equipment for medium to large agricultural acreage, farmers must weigh the benefits of manual lever mechanisms against motorized or battery-powered pump systems. Manual knapsack sprayers excel in remote or rugged terrain where battery recharge infrastructure is unavailable. Professional growers frequently rely on flexible equipment platforms, such as a specialized durable hand-operated knapsack sprayer machine for crop protection; utilizing a versatile hand-operated agriculture knapsack sprayer available in 12L, 16L, 18L, and 20L configurations allows farm managers to standardise fleet components while matching specific tank volumes to individual worker capacities and field terrain conditions.

From an engineering standpoint, tank design must incorporate ergonomic contouring, wide padded shoulder straps, and lower lumbar support panels to distribute filled fluid weight evenly across the operator's torso. Fluid sloshing during movement induces kinetic instability and accelerated muscle fatigue. Advanced sprayer tanks feature internal anti-slosh baffles and deep-molded sump channels that allow the agriculture spray pump to draw fluid continuously even when operating on steep hillsides or tilted angles. Furthermore, wide filler openings equipped with integrated basket strainers prevent large particulate contamination from entering the tank during field refills.

Field Calibration and Operating Pressure Dynamics

Field calibration is the methodical process of adjusting forward walking speed, pump stroke frequency, and nozzle flow rate to achieve the exact target chemical application rate per hectare.

Uncalibrated spraying equipment is a major cause of ineffective pest management and chemical over-application worldwide. Operating an agriculture spray pump without precise pressure regulation leads to severe application variance across field zones. Calibration begins with measuring the actual liquid discharge rate from the nozzle tip over a fixed one-minute interval using a calibrated measuring cylinder. By combining this measured discharge rate with the operator's average walking speed and the nozzle's effective swath width, farm managers can precisely calculate the application volume in liters per hectare.

Maintaining a constant pump stroke cadence is essential when operating manual hand-operated knapsack sprayers. Operators should establish a rhythmic pumping pace to stabilize air dome pressure within the target operating window. Variations in pressure alter both nozzle discharge volume and spray pattern symmetry. A drop in system pressure reduces the spray angle of flat fan nozzles, creating unsprayed gaps between adjacent passes. Conversely, excessive pressure increases droplet velocity, inducing misting and drift off target foliage.

To eliminate calibration error in professional crop protection routines, modern sprayers can be fitted with inline pressure control valves (PCVs) set to specific threshold pressures, such as 1.5 bar, 2.0 bar, or 3.0 bar. These precision pressure-regulating valves restrict fluid delivery until internal chamber pressure reaches the calibrated rating, automatically shutting off flow if pressure falls below threshold. This engineering refinement guarantees that nozzle droplet spectra remain uniform throughout the entire spraying session, regardless of minor fluctuations in operator pumping speed.

Working Principle and Pressure Control Tip: Manual air-pressure sprayers rely on compressing air above the liquid column inside a sealed container. As fluid is discharged through the nozzle, the internal air volume expands, causing a gradual reduction in static pressure. To ensure constant chemical application depth, operators should pump the handle until the safety relief valve gently engages, signaling maximum rated working pressure. Check and replace the air chamber seal annually to prevent micro-air leaks that compromise pressure stability during field operations.

Preventative Maintenance and Operational Longevity

Systematic preventative maintenance preserves internal pump tolerances, prevents chemical cross-contamination, and prevents component failure during peak operational seasons.

Agricultural chemicals contain active suspended solids, solvents, and acidic compounds that can degrade internal seals, corrode metal components, and clog nozzle tips if left inside the spraying assembly. A thorough maintenance routine starts immediately following the conclusion of daily field operations. The sprayer tank should be drained of leftover spray mixture into appropriate chemical recovery containers and thoroughly rinsed with clean water mixed with a specialized tank-neutralizing cleaning agent. Operating the agriculture spray pump with clean water flushes internal check valves, hose lines, and nozzle assemblies, preventing active ingredients from crystallizing inside narrow flow channels.

Mechanical wear primarily affects moving rubber components, such as piston cup leather seals, O-rings, and diaphragm membranes. Inspecting these components monthly reveals early signs of hardening, chemical swelling, or surface cracking. Applying a thin coating of food-grade silicone grease to rubber seals during reassembly restores pneumatic seal integrity and lowers physical operating friction. Metal components, including stainless steel suction filters and nozzle strainers, must be cleaned using soft nylon brushes rather than metal wire pins, which can deform precision nozzle orifice geometries and ruin spray patterns.

Storage conditions during off-season months significantly impact sprayer service life. Polypropylene and polyethylene tanks exposed to intense solar ultraviolet radiation undergo photo-oxidation, leading to structural polymer embrittlement and stress cracking along molded seams. Clean sprayers should be stored indoors in dry, dark environments away from direct sunlight and extreme freezing temperatures. Freezing leftover water inside the pressure chamber can rupture plastic valve housings. Adhering to these preventive engineering maintenance routines extends equipment operational life, ensuring dependable performance season after season.

Summary and Engineering Recommendations

Selecting the correct crop protection sprayer requires matching field operational scale, chemical compatibility requirements, and ergonomic factors with robust mechanical pump engineering.

Modern crop protection demands a rigorous technical approach to selecting liquid chemical application equipment. As detailed throughout this technical guide, evaluating the structural integrity of the agriculture spray pump, fluid pressure dynamics, tank volumetric capacity, and nozzle atomization characteristics is essential for maximizing chemical delivery efficiency while minimizing operational waste. Investing in high-grade sprayer platforms built from chemically inert polymers and precision stainless components protects your operational investment against premature wear caused by aggressive agricultural formulations.

For small to mid-sized acreage, vegetable gardens, and commercial greenhouses, manual air-pressure and hand-operated knapsack sprayers offer high portability, minimal maintenance overhead, and excellent cost efficiency. Matching tank capacity (from 12-liter compact models up to 20-liter high-capacity field units) to operator physiological capabilities ensures safe, efficient field productivity without excessive physical fatigue. Furthermore, establishing a strict calibration regimen paired with routine daily system flushing ensures highly consistent spray distribution profiles and long equipment service life.

Ultimately, selecting superior spraying equipment directly enhances crop yield quality, optimizes chemical usage, and supports sustainable agricultural stewardship. By evaluating your specific field requirements against the engineering specifications outlined in this guide, farm managers and commercial equipment buyers can confidently deploy crop protection tools that deliver long-term reliability and exceptional field performance.
